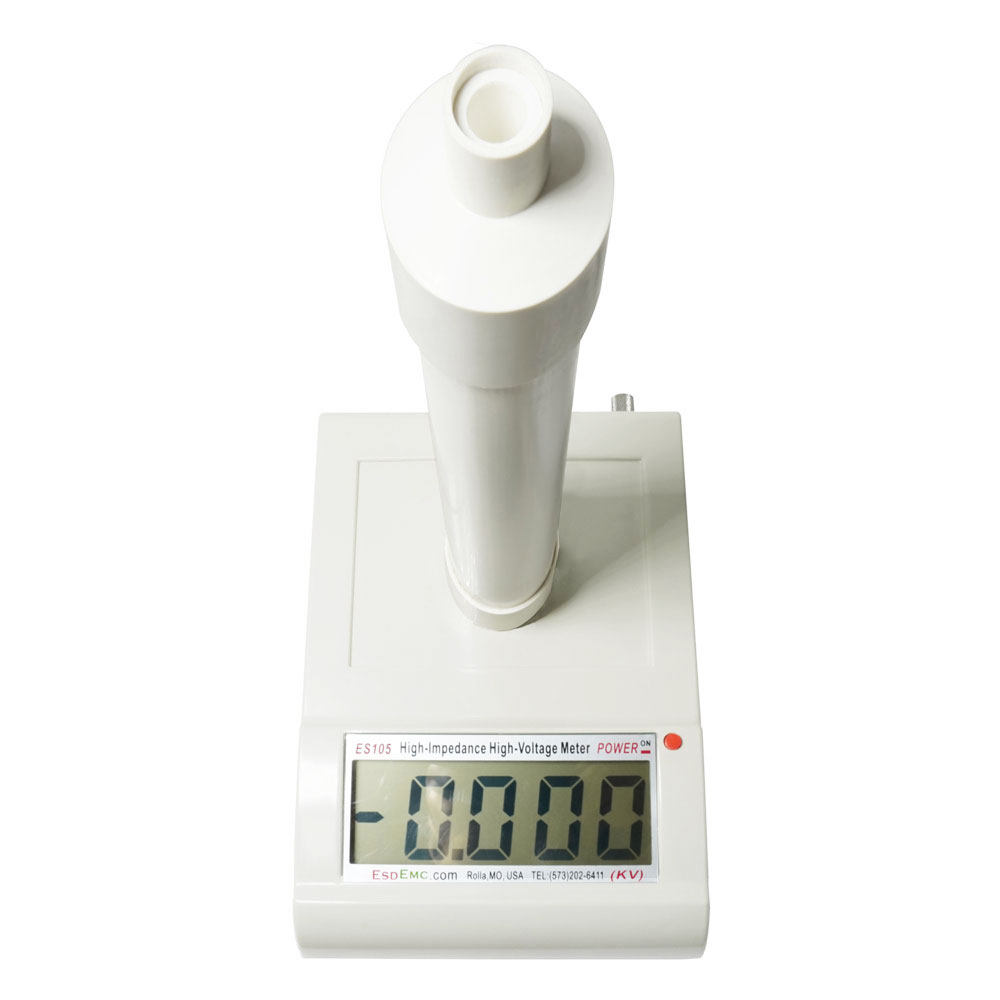

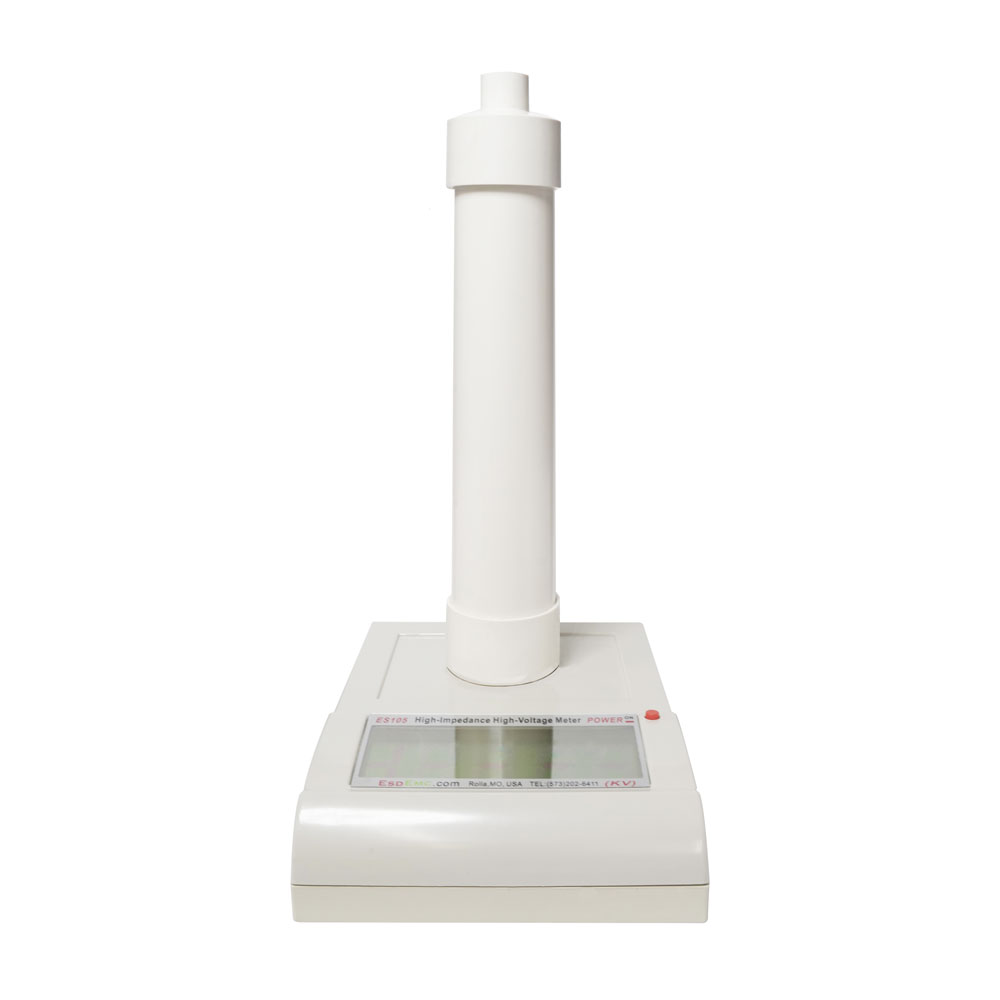

ES105 is a high performance and cost effective high-impedance, high-voltage meter. It features significantly high input impedance (greater or equal to 100 GigaOhm), high accuracy, high resolution measurement, and a wide measurement range (DC 0-100kV).
$2,400
Available on backorder
ES105 is a high performance and cost effective high-impedance, high-voltage meter. It features significantly high input impedance (greater or equal to 100 Giga-ohm), high accuracy, high resolution measurement, and a wide measurement range (DC 0-100kV)
| Specification | Parameters |
| Measurement range | DC ± 1V ~ 100 kV (Auto ranging 1 ~ 19,999 V and 10 ~ 100,000V) |
| Measurement Resolution | 1V for low range and 10 V for high range |
| Measurement Accuracy | ± 1% ± 2 counts |
| Input Impedance | ≥ 100 G Ohm |
| Display | 4 ½ Digit LCD |
| Power | AC 100-240 V or 9V Battery |
| Working Temperature | 32 to 122°F (0 to +50°C) |
| Working Humidity | 0 to 70% RH |
| Product Weight | Approx. 1.2 kg; 2 lbs. 10 oz |
| Dimensions (LxWxH) | 216 x 153 x 356 mm; 8.5 x 6 x 14 in. |
| Weight | 2 kg |
|---|---|
| Dimensions | 45 × 35 × 25 cm |
