ESDEMC Technology LLC offers a variety of broadband current transformer models each designed to monitor current transients within various bandwidths and current ranges. We offer both through-hole and SMA connector port variants. Current probe applications include high frequency current measurements, electromagnetic compatibility testing procedures, ESD simulator discharge current waveform measurements, and more.
| Probe Model | Probe Factor (V/A) | Transfer Impedance (dBΩ) | Current-Time Product (A∙µs) | Max RMS Current [RF – CW] (A) | Flat Response Bandwidth (3dB) | Insertion Loss Bandwidth (1dB) | Inner Diameter (mm) | Connector Type |

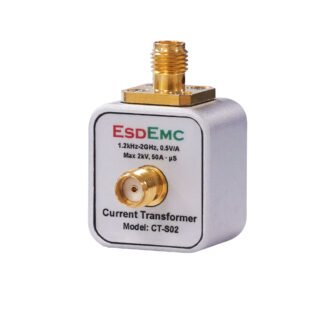

| CT-S02-0p2 | 0.2 | -14 | 150 | N/A | 1kHz – 2GHz | DC – 1.7GHz | N/A | SMA |
| CT-S02-0p5 | 0.5 | -6 | 50 | N/A | 1.2kHz – 2GHz | DC – 1.3GHz | N/A | SMA |

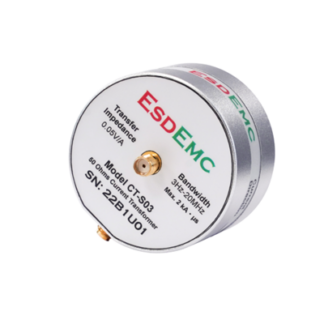

| CT-S03-0p05 | 0.05 | -26 | 2000 | N/A | 3Hz – 20MHz | DC – 500MHz | N/A | SMA |

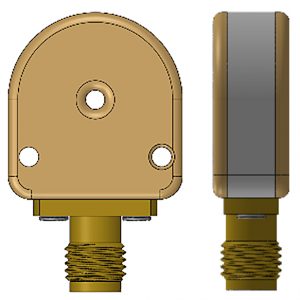

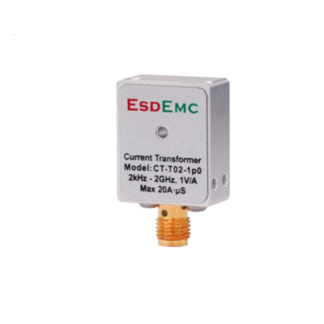

| CT-T02-1p0 | 1.0 | 0 | 20 | N/A | 2kHz – 2GHz | N/A | 1.6 | SMA |
| CT-T02-0p5 | 0.5 | -6 | 80 | N/A | 2kHz – 2GHz | N/A | 1.6 | SMA |
| CT-T02-0p2 | 0.2 | -14 | 100 | N/A | 2kHz – 2GHz | N/A | 1.6 | SMA |
| CT-T03-1p0 | 1.0 | 0 | 30 | N/A | 2kHz – 2GHz | N/A | 3 | SMA |
| CT-T03-0p5 | 0.5 | -6 | 80 | N/A | 2kHz – 2GHz | N/A | 3 | SMA |
| CT-T15-1p0 | 1.0 | 0 | 5 | N/A | 2kHz – 1.5GHz | N/A | 15 | SMA |

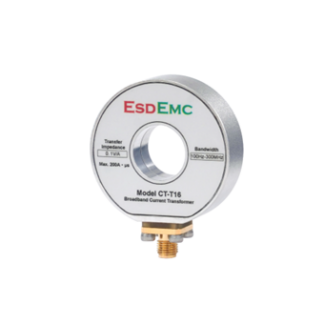

| CT-T16-0p1 | 0.1 | -20 | 200 | N/A | 150Hz – 200MHz | N/A | 15 | SMA |

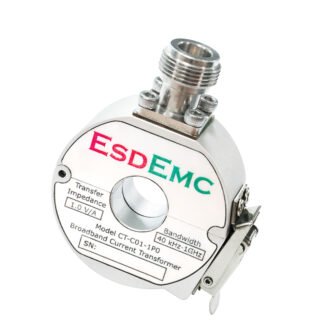

| CT-C01-1p0 | 1 | 0 | N/A | 8 | 30kHz – 1GHz | N/A | 14.9 | Type-N |
| CT-C02-1p0 | 1 | 0 | N/A | 15 | 100kHz – 1GHz | N/A | 32 | Type-N |
| CT-C03-1p0 | 1 | 0 | N/A | 15 | 40kHz – 600MHz | N/A | 40 | Type-N |
| CT-C03-10p0 | 10 | 20 | N/A | 0.3 | 2MHz – 500MHz | N/A | 40 | Type-N |
| CT-T10-0p5 | 0.5 | -6 | 200 | N/A | 10Hz – 20MHz | N/A | 15.2 | BNC |
| CT-T10-0p05 | 0.05 | -26 | 2000 | N/A | 5Hz – 30MHz | N/A | 15.2 | BNC |
