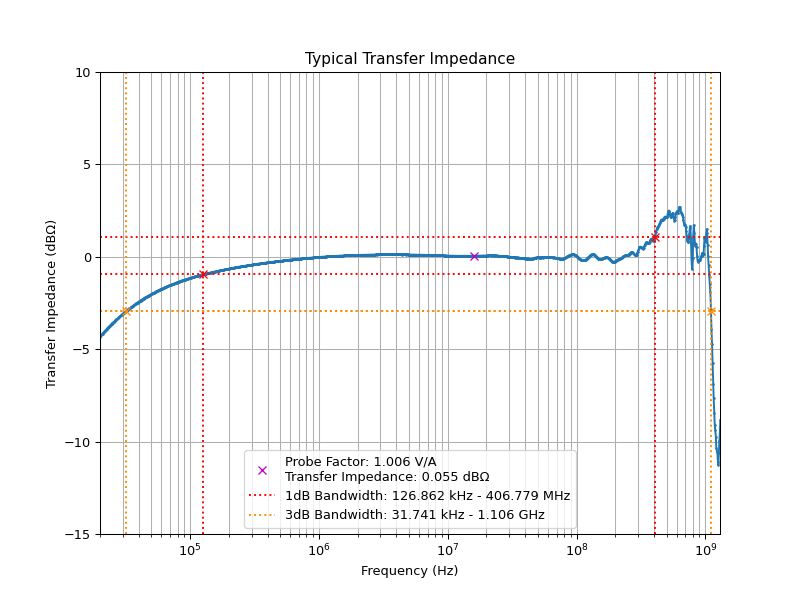

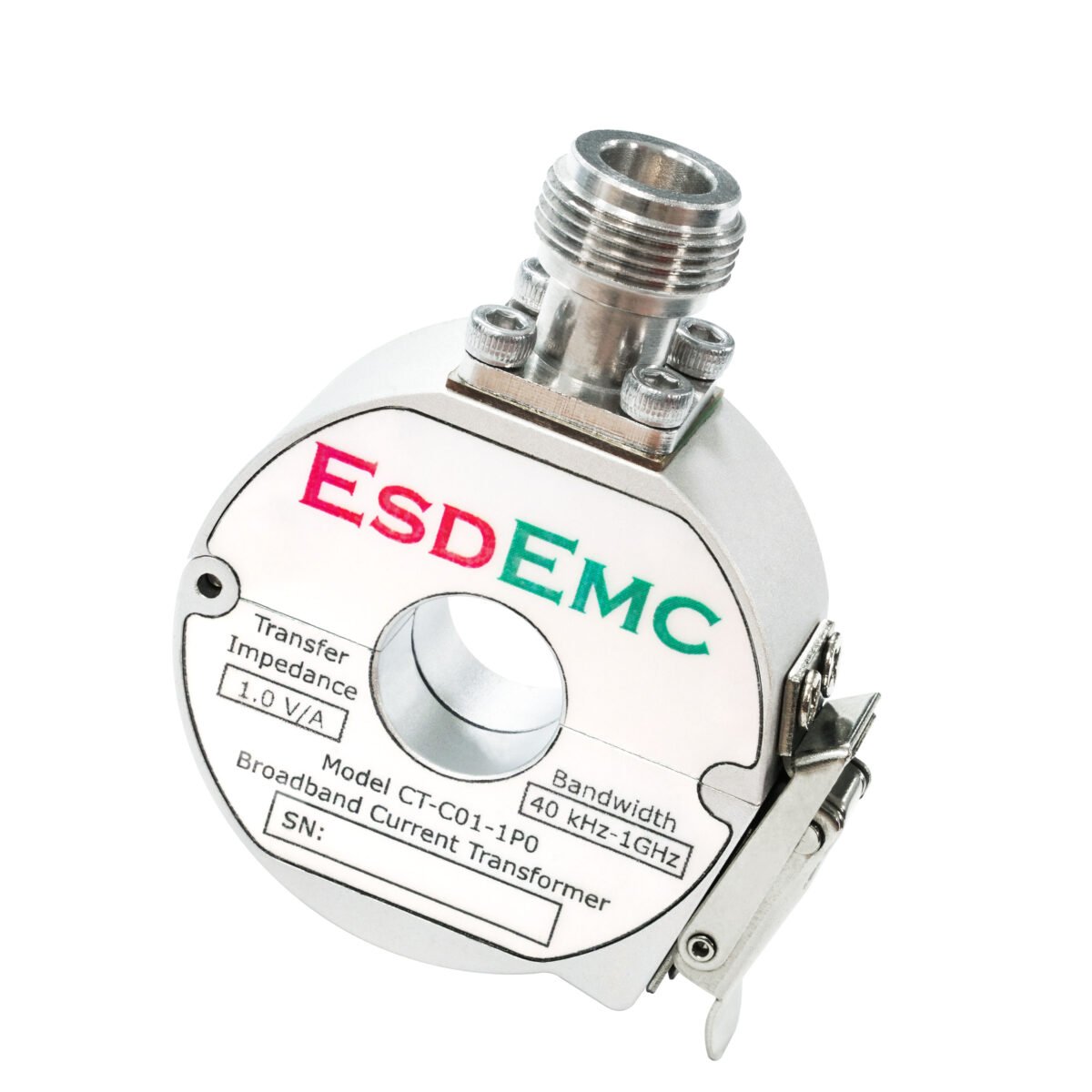

The CT-C01 series broadband current transformers are designed to monitor current in both time domain and frequency domain measurement applications. This clamping-style probe has a 13 mm inner diameter, a 53 mm outer diameter, and a draw-latch clamp. The probe’s frequency response 3 dB bandwidth nominally spans from 40 kHz to 1 GHz.
The CT-C01 series broadband current transformers are designed to monitor current in both time domain and frequency domain measurement applications. This clamping-style probe has a 13 mm inner diameter, a 53 mm outer diameter, and a draw-latch clamp. The probe’s frequency response 3 dB bandwidth nominally spans from 40 kHz to 1 GHz.
| Parameter | Value |
| Frequency Range (3 dB Bandwidth) | 40 kHz – 1 GHz |
| Inner Diameter | 13 mm |
| Outer Diameter | 53 mm |
| Height | 19 mm |
| Nominal Transfer Impedance | 1 V/A |
| Nominal Transfer Impedance (dB) | 0 dB |
| Connector Type | Type-N |
| Max RMS Current | 8 A |
5. Ordering Information
| Line | Part # or Option # | Description | Status |
| 1 | CT-C01 | CT-T01 Broadband Current Transformer, 30 kHz – 1 GHz | Active |
