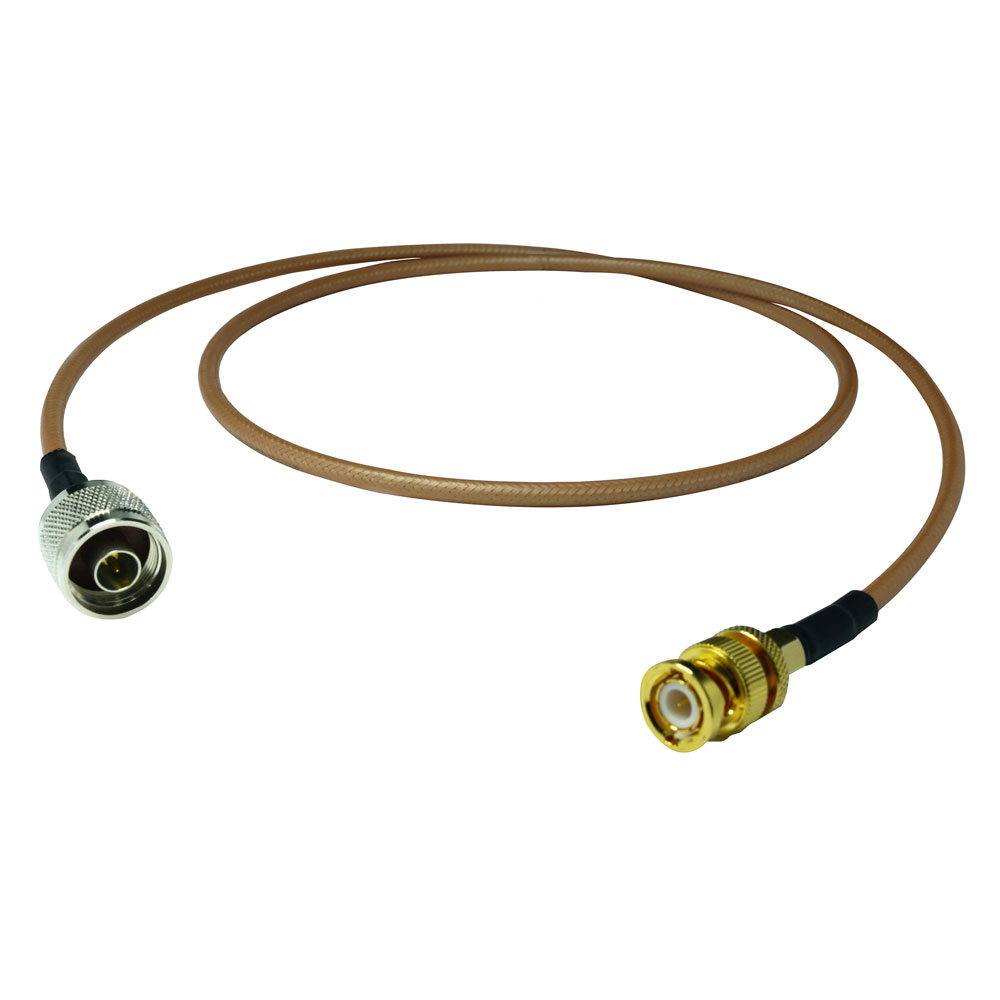

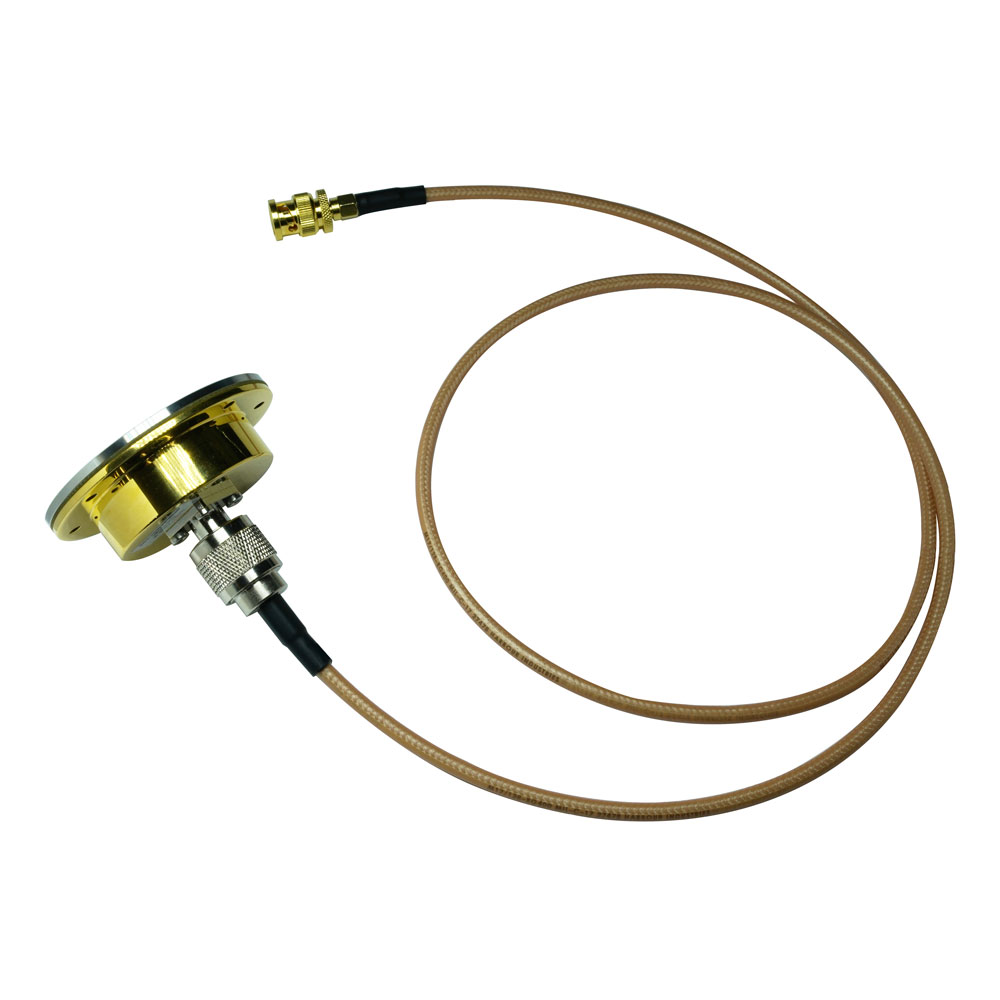

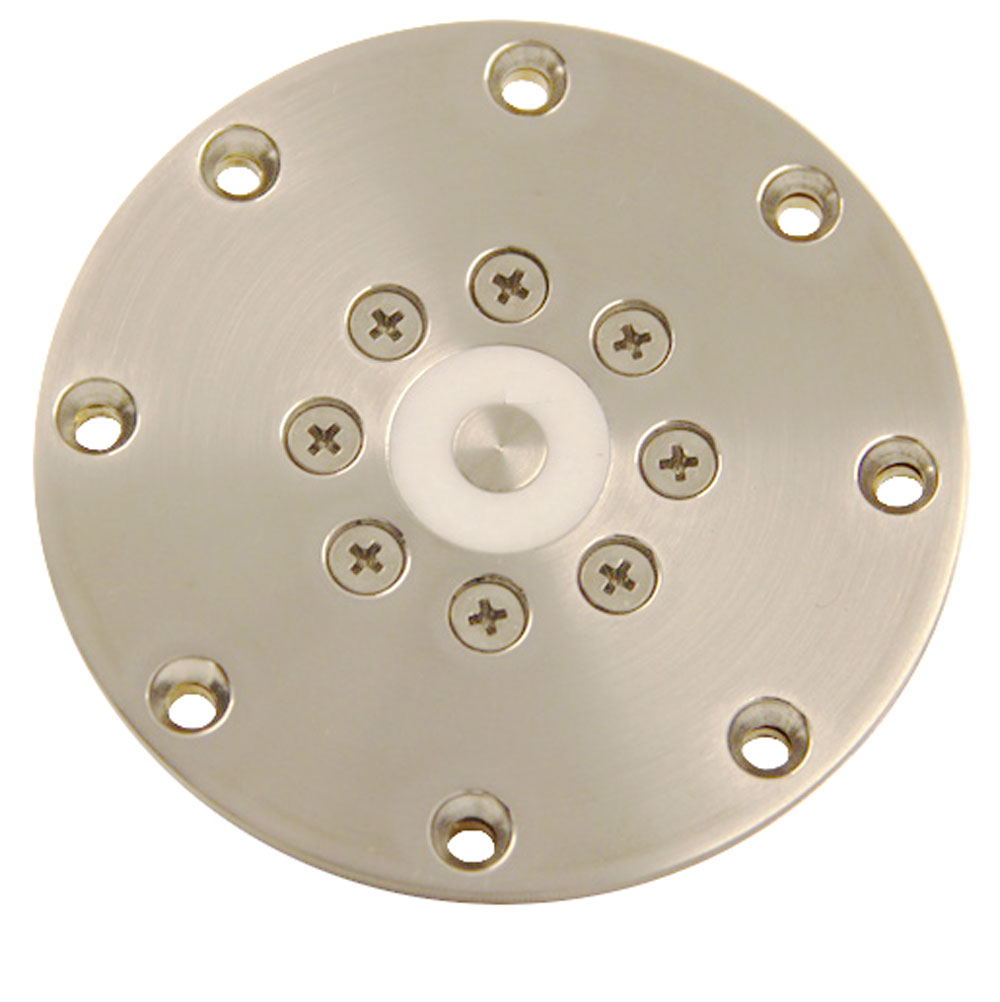

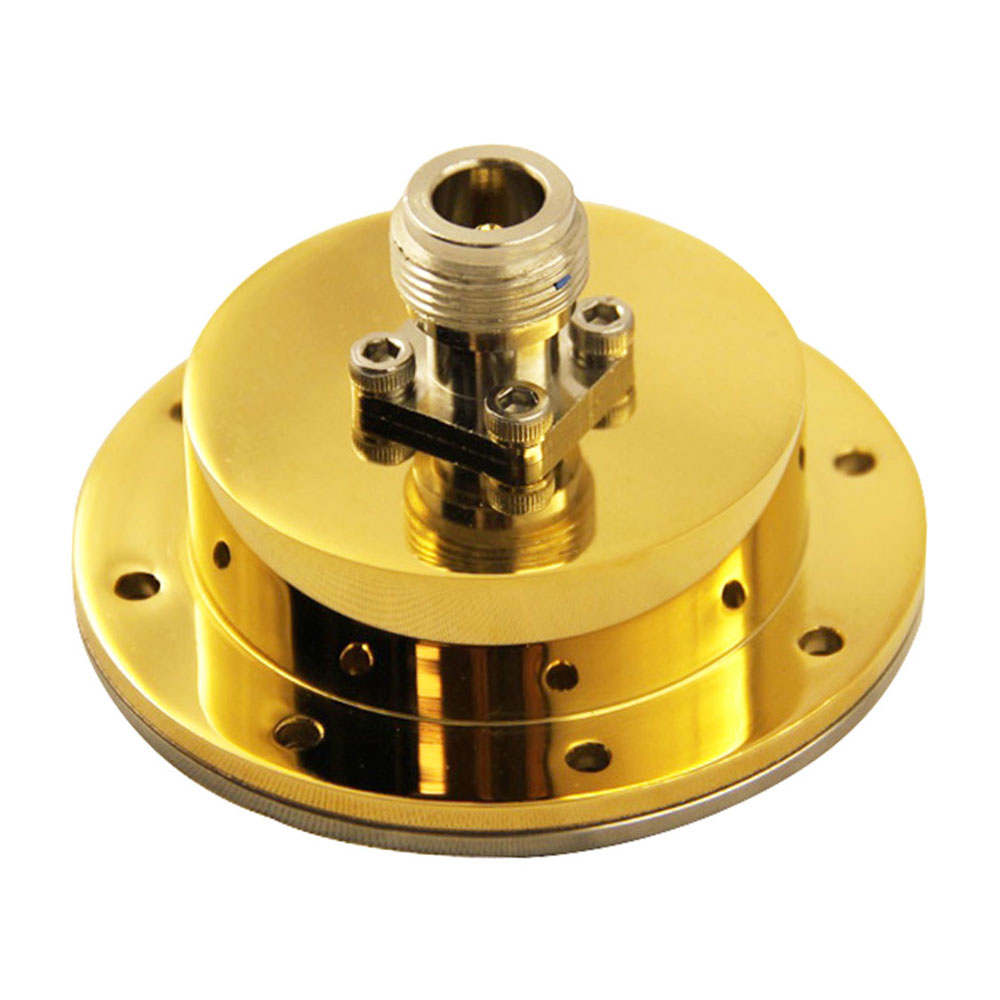

Model A4001 ESD Current Target Calibration Kit is a wide-band ESD Target for ESD simulator calibration. The 2 Ohm impedance A4001 ESD target complies with the latest standards IEC 61000-4-2 and ISO 10605. The 1 Ohm impedance A4001-N1R ESD target complies with the standard MIL-STD-331D. The wide-band attenuator provides return loss while the cable is used as the connection to the oscilloscope. The frequency response specifications are taken with the complete assembly.
A4001 ESD Current Target Calibration Kit is comparable to the following models: Haefely PET 4000, Teseq MD 103, Noiseken 06-00067A, and EM Test CTR2.
Price range: $3,500 through $4,000
| A4001 | A4001-N1R | |

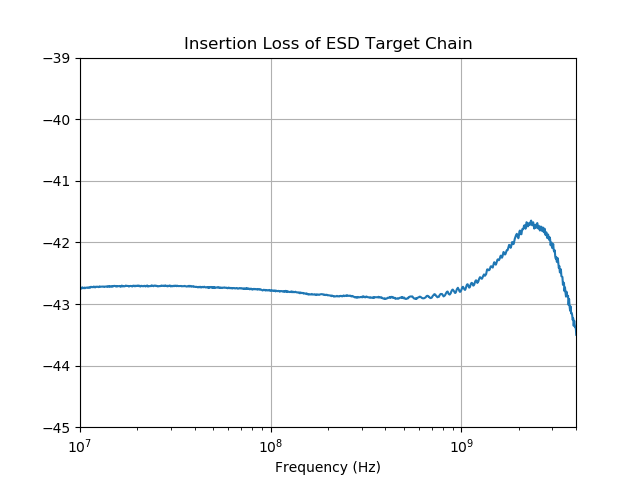

| Frequency response | DC – 4 GHz
(S21 < ± 0.5 dB up to 1GHz, < ± 1.2 dB up to 4 GHz) |
DC – 4 GHz
(S21 < ± 0.5 dB up to 1GHz, < ± 1 dB up to 4 GHz) |
| Input resistance | 2.08 Ohm (± 1%)
(2.00 Ohm when match with 50 Ohm load) |
1 Ohm (± 5%) |
| Max. IEC Pulse Amplitude | Verified up to ± 30 kV | Up to ± 25 kV |

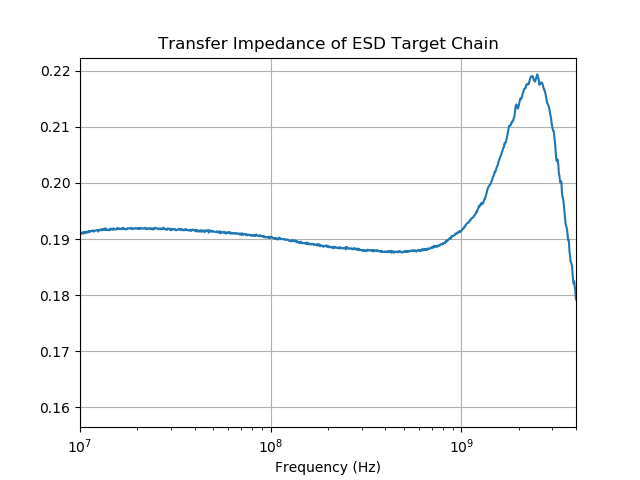

| Transfer Impedance | 0.2 V/A with 20 dB attenuator | 0.1 V/A with 20 dB attenuator |
| Dimensions | D70 x H30 mm | |
| Weight | 0.5 kg | |
| Part Number | Description | Lead Time |
| A4001-kit-N-20 | 2 Ohm ESD Current Target with 20 dB N type attenuator and cable with factory calibration report | 1-3 weeks |
| A4001-kit-N-30 | 2 Ohm ESD Current Target with 30 dB N type attenuator and cable with factory calibration report | 1-3 weeks |
| A4001-Kit-N1R-20 | 1 Ohm ESD Target with 20 dB N type attenuator and cable per MIL-STD-331D | 1-3 weeks |
| A4001-TP | ESD Target Plane | 2-4 weeks |
| A4001-TSC | ESD Target Plane, Oscilloscope Shielding Cabinet, Power Line Filter | 2-4 weeks |
| Weight | 1 kg |
|---|---|
| Dimensions | 45 × 30 × 15 cm |
| Model Number | A4001-kit-N-20, A4001-kit-N-30, A4001-kit-N1R-20 |
