ES813 Series Precision Electrostatic / High Voltage Generators are designed for Laboratory usage with precise and stable High voltage DC output. They can be widely used in Electrostatic Generation, Electrostatic Discharge (ESD) Test, Electrospinning, and other high voltage applications in many industries. The ES813 can be optionally configured with programmable control functionality, allowing remote operation and integration
Options:
Polarity: Positive / Negative / Dual
ES813 Series Precision Electrostatic / High Voltage Generators are designed for Laboratory usage with precise and stable High voltage DC output. They can be widely used in Electrostatic Generation, Electrostatic Discharge (ESD) Test, Electrospinning, and other high voltage applications in many industries.
The output voltage of the models we list in the table are the typical output voltage that we could supply. Normally, the maximum output voltage that we supply could up to ±160kV. Please contact us if you need other parameters.

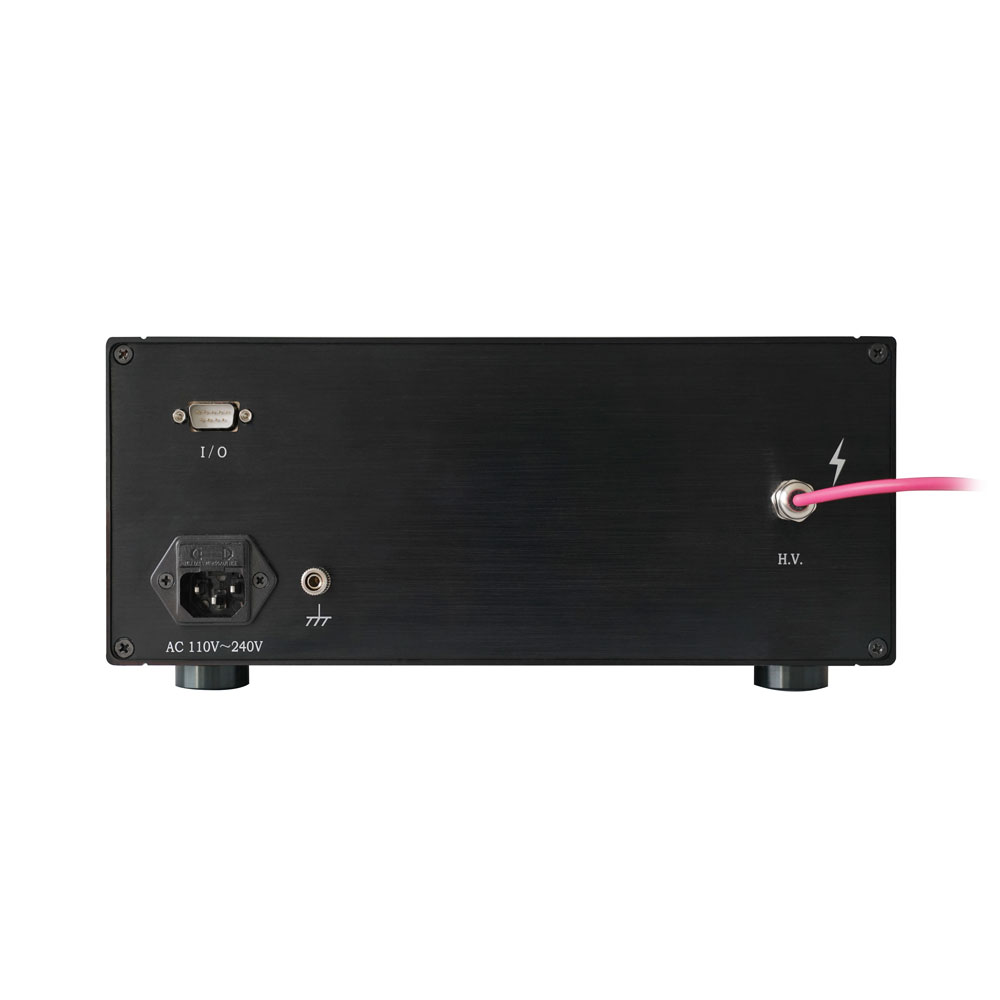

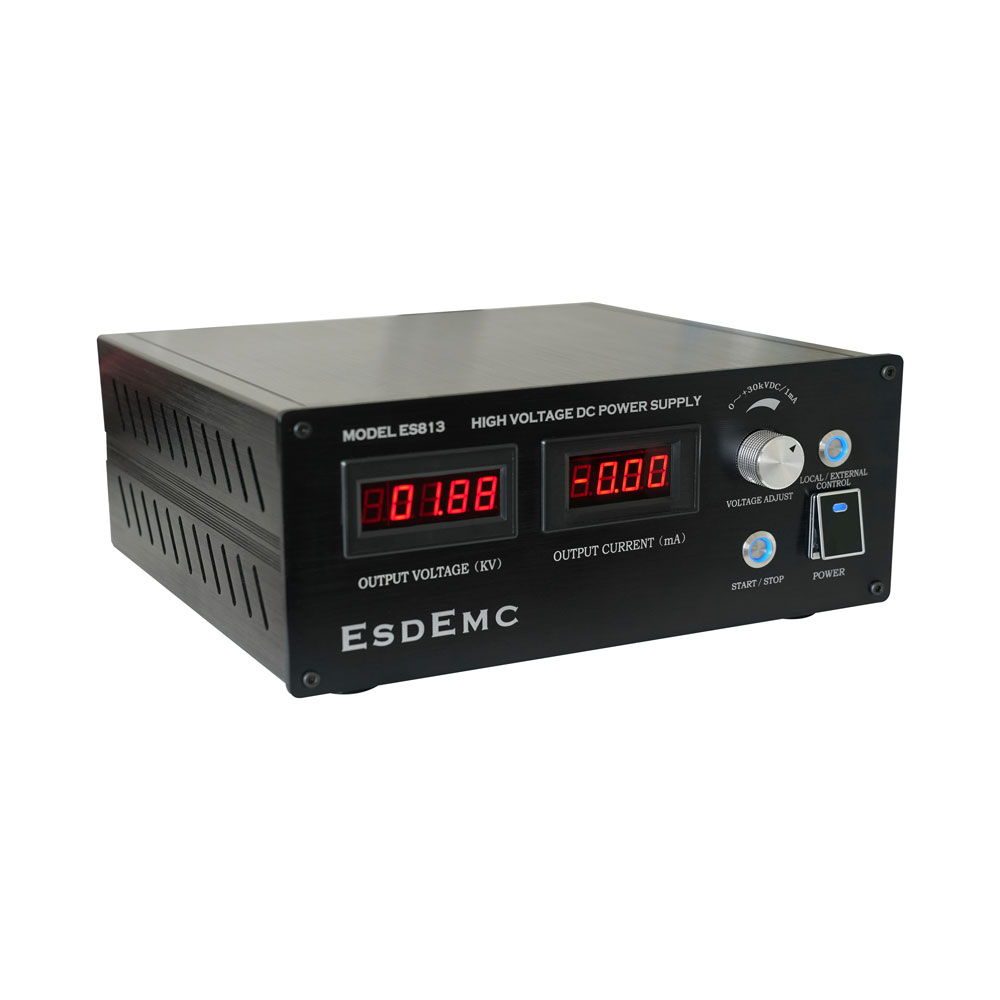

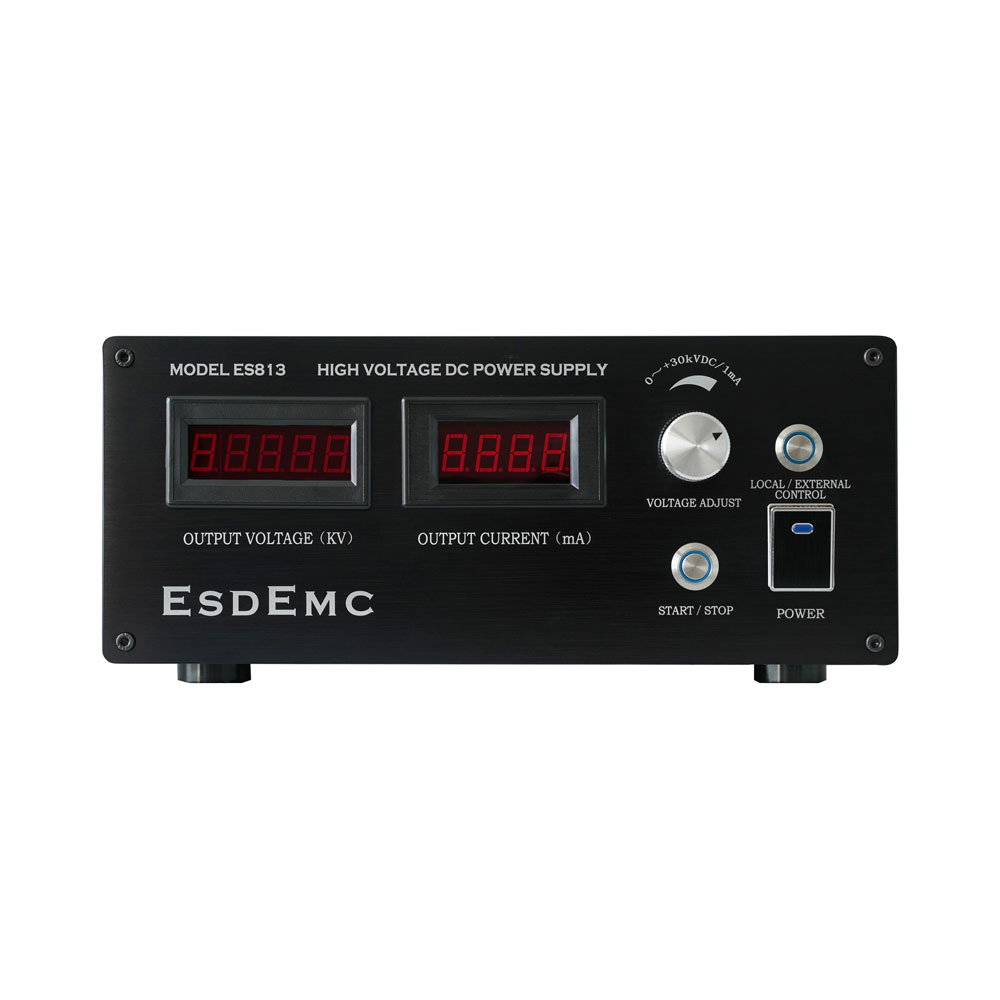

ES813 Series Precision ES/HV Generator
| Model | ES813-D50.1-220 | ES813-D30.1-220 | ES813-D20.1-220 |
| Maximum Output Voltage | 50kV | 30kV | 20kV |
| Maximum Output Current | 1mA | 1mA | 1mA |
| Input Voltage | AC220V±10% | AC220V±10% | AC220V±10% |
| output rating | 30W | 30W | 30W |
| Load Regulation | 0.10% | 0.10% | 0.10% |
| Working temperature | （-10℃～+50℃） | （-10℃～+50℃） | （-10℃～+50℃） |
| Time drift | ≤ 0.1 %/h | ≤ 0.1 %/h | ≤ 0.1 %/h |
| Protection | 1% | 1% | 1% |

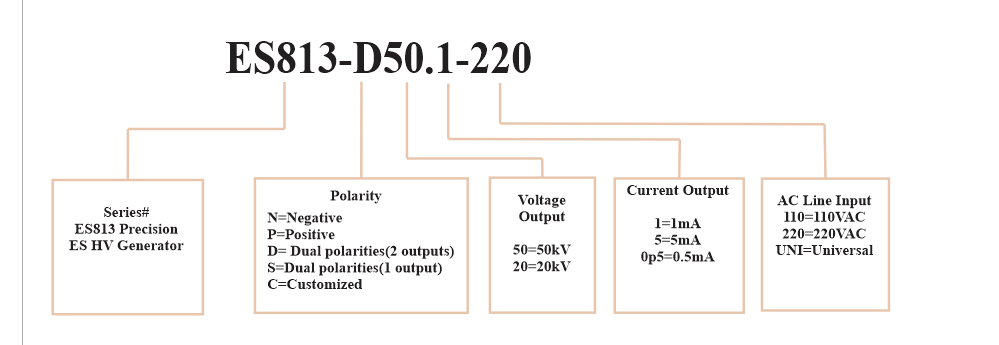

| Line | Part # or Option # | Description |
| 1.1 | ES813-D50.1-220 | 50kV Precision ES/HV Generator |
| 1.2 | ES813-D30.1-220 | 30kV Precision ES/HV Generator |
| 1.3 | ES813-D20.1-220 | 20kV Precision ES/HV Generator |
Note 1: The options above are reference options, please contact us to discuss more details or customized values
Note 2: Programmable control is an optional feature, and must be specified at the time of order. Standard configuration does not include this function
| Polarity | Positive, Negative, Dual |
|---|
