TVS-15G Transient Voltage Suppressor, DC - 15 GHz
TVS-15G Transient Voltage Suppressor, DC - 15 GHz
TVS-15G Transient Voltage Suppressor, DC - 15 GHz
TVS-15G Transient Voltage Suppressor, DC - 15 GHz

TVS-15G Transient Voltage Suppressor, DC – 15 GHz

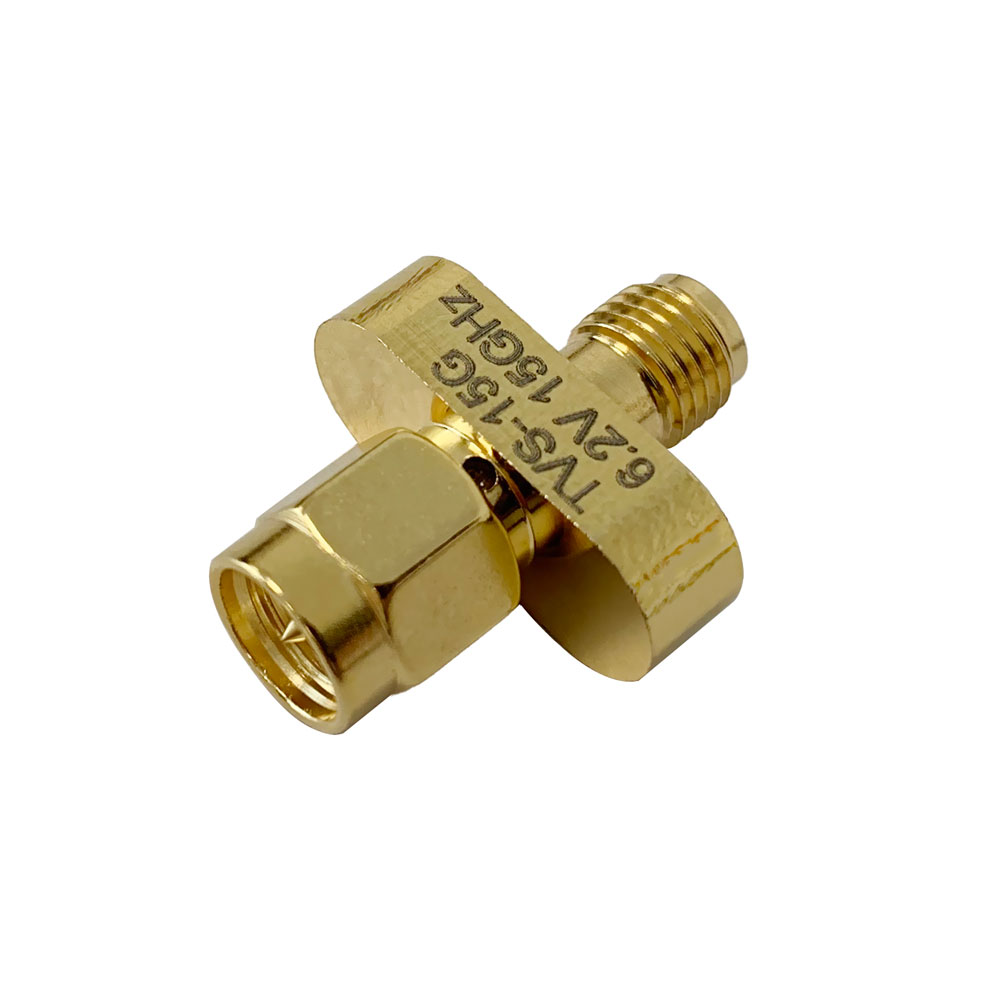

The model TVS-15G is an ultra-high bandwidth transient voltage suppressor functional from DC – 15 GHz. This device is designed to protect oscilloscopes from high frequency, high voltage transients, such as ESD measurement. The TVS-15G will clamp high voltage transients and is matched to 50 Ω system.

  Features

  • Functional for a wide bandwidth (DC – 15 GHz)
  • Clamps high frequency, high voltage transients to between ±2 V and ±7.5 V
  • Useful for IEC 61000-4-2 contact and air discharge up to ±12 kV and ±18 kV, respectively
  • Matched to 50 Ω system

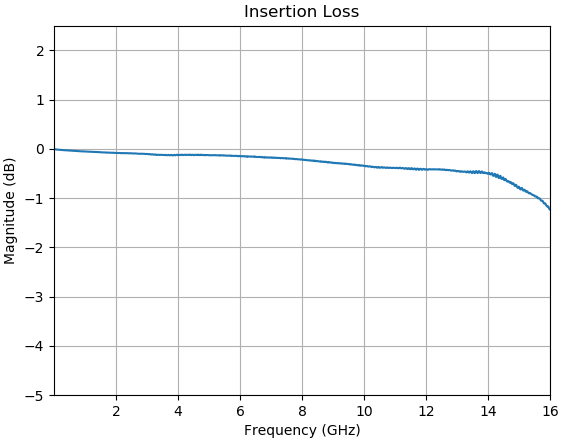

  • Insertion loss at 15 GHz approximately 0.8 dB

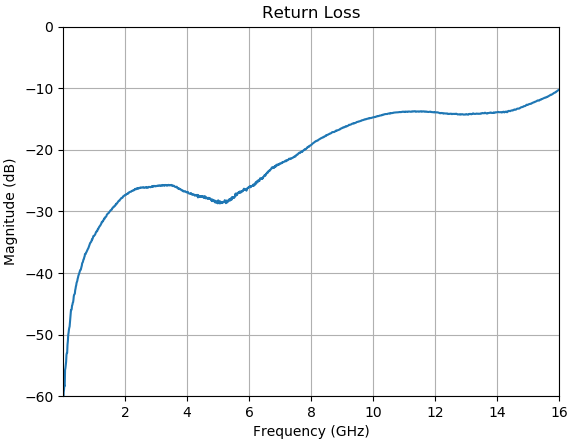

  • Return loss at 1 GHz less than 30 dB

$1,080

In stock (can be backordered)

Add to quote

Description

1.    Description

The model TVS-15G is an ultra-high bandwidth transient voltage suppressor functional from DC – 15 GHz. This device is designed to protect oscilloscopes from high frequency, high voltage transients, such as ESD measurement. The TVS-15G will clamp high voltage transients and is matched to 50 Ω system.

2.    Features

  • Functional for a wide bandwidth (DC – 15 GHz)
  • Clamps high frequency, high voltage transients to between ±2 V and ±7.5 V
  • Useful for IEC 61000-4-2 contact and air discharge up to ±12 kV and ±18 kV, respectively
  • Matched to 50 Ω system
  • Insertion loss at 15 GHz approximately 0.8 dB
  • Return loss at 1 GHz less than 30 dB

3.    Applications

  • Oscilloscope protection for high frequency, high voltage measurements
  • General protection device for measurements in a 50 Ω system

4.    Specifications

Specifications Parameter Unit Comments
Clamping voltage ±6.2 – ±7.5 V Depends on pulse level
Maximum rated ESD level (contact) ±12 kV IEC 61000−4−2 contact (ESD)
Maximum rated ESD level (air) ±18 kV IEC 61000−4−2 air (ESD)
Maximum rated surge level 2 A 8/20 µs
TLP dynamic resistance 1.2 Ω 4 A – 16 A
Bandwidth DC – 15 GHz
Impedance 50 Ω From DC – 15 GHz
Weight 8 g

5.   Ordering Information

Part Number Description Lead Time
TVS-15G DC-15 GHz Wideband Transient Voltage Suppressor 1-3 weeks

Additional information

Weight 0.2 kg
Dimensions 10 × 10 × 6 cm

Documents

TVS-15G Transient Voltage Suppressor DATASHEET (PDF)
