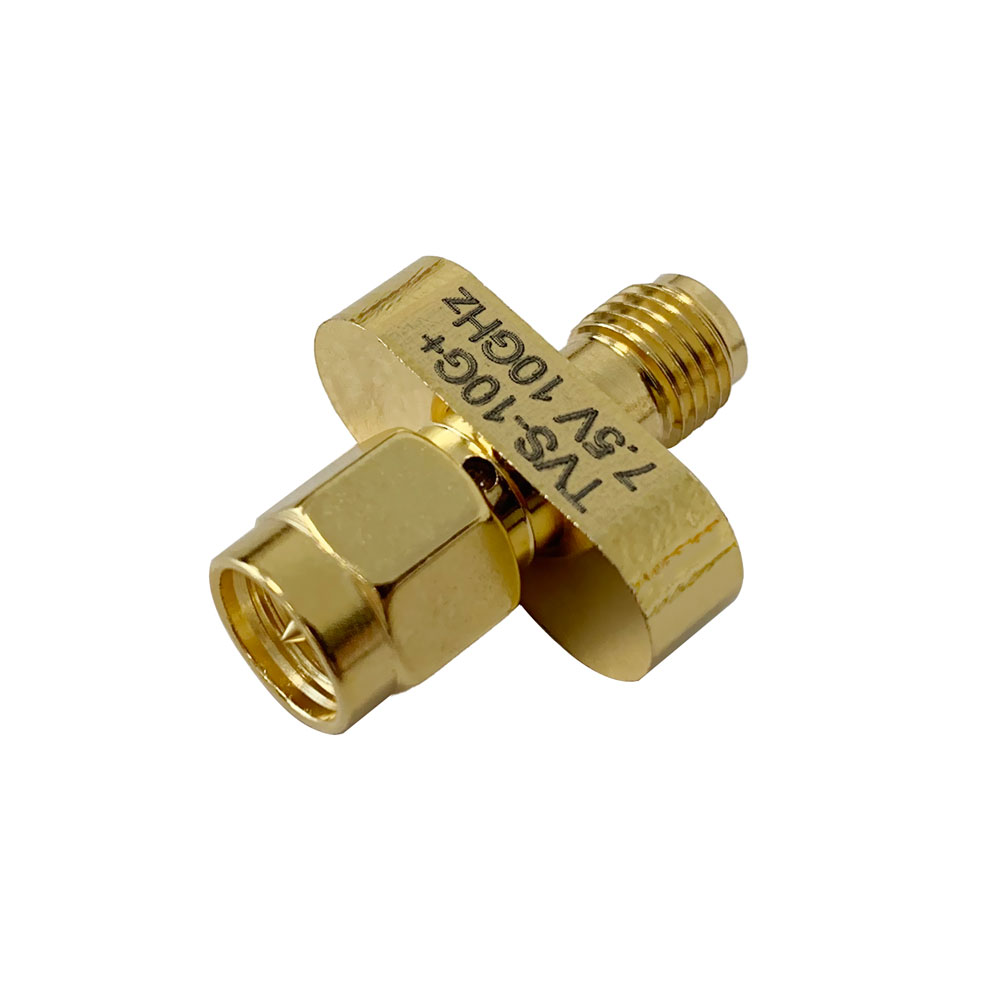

The model TVS-10G+ is an ultra-high bandwidth transient voltage suppressor functional from DC – 10 GHz. This device is designed to protect oscilloscopes from high frequency, high voltage transients, such as ESD measurement. The TVS-10G+ will clamp high voltage transients and is matched to 50 Ω system. Unlike previous designs, the TVS-10G+ does not cause rising-edge distortion on signals below its trigger voltage.
$860
In stock (can be backordered)
The model TVS-10G+ is an ultra-high bandwidth transient voltage suppressor functional from DC – 10 GHz. This device is designed to protect oscilloscopes from high frequency, high voltage transients, such as ESD measurement. The TVS-10G+ will clamp high voltage transients and is matched to 50 Ω system. Unlike previous designs, the TVS-10G+ does not cause rising-edge distortion on signals below its trigger voltage.

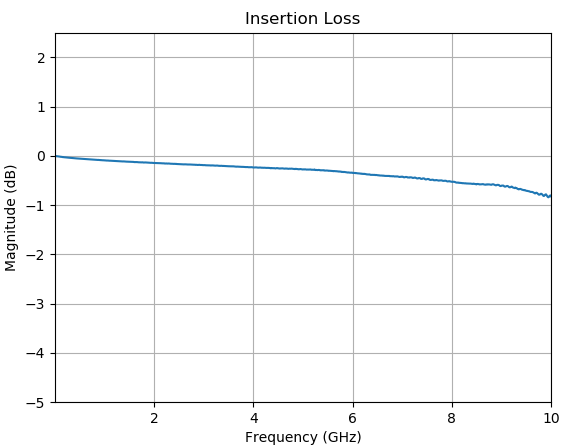

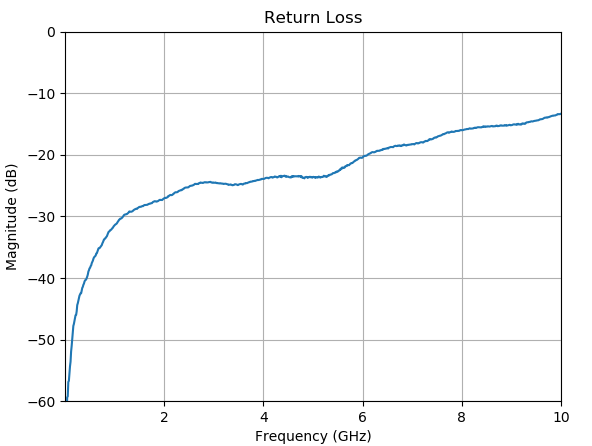

| Specifications | Parameter | Unit | Comments |
| Clamping voltage | ±7.5 – ±11 | V | Depends on pulse level |
| Maximum rated ESD level | ± 10 | kV | IEC 61000−4−2 contact (ESD) |
| Maximum rated ESD level | ± 15 | kV | IEC 61000−4−2 air (ESD) |
| Maximum rated surge level | 4.5 | A | 8/20 µs |
| TLP dynamic resistance | 0.45 | Ω | 4 A – 16 A |
| Bandwidth | DC – 10 | GHz | |
| Impedance | 50 | Ω | From DC – 10 GHz |
| Weight | 8 | g |
| Part Number | Description | Lead Time |
| TVS-10G+ | DC-10 GHz Wideband Transient Voltage Suppressor | 1-3 weeks |
| Weight | 0.2 kg |
|---|---|
| Dimensions | 10 × 10 × 6 cm |
