The LVS-500 series low voltage surge testers, output waveforms described in the IEC 61000-4-5 standard and/or surge waveforms described in GR-1089-CORE and C62.45-2002 IEEE, are designed for testing the surge immunity of devices at both wafer and package levels. Determination of the surge stressed EOS failure thresholds is made easy using the pulse generator.

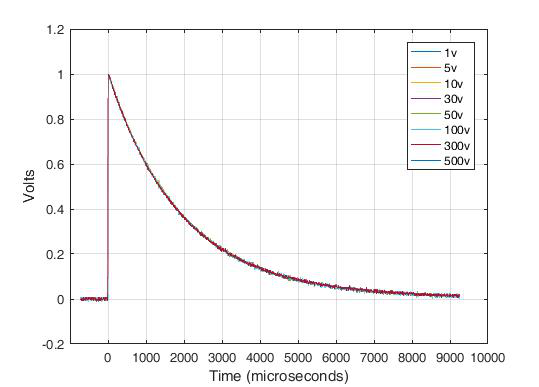

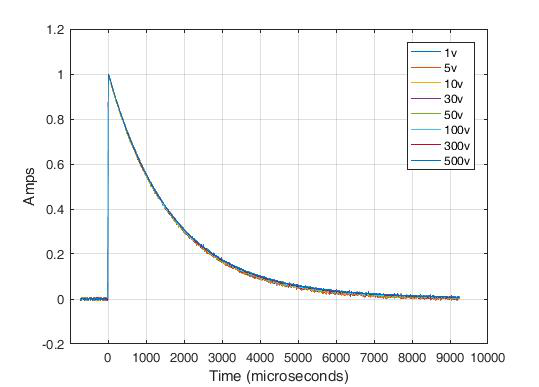

The pulse source design and pulse source delivery method ensure waveform performance directly at the device under test, not at the generator output. Current waveforms can be captured and analyzed for each surge event with automated pulsed-failure measurement setup. In addition, voltage waveforms can be captured and used to determine the turn-on level of protection structures. They can also be used as a means of failure determination, as the leakage characteristics show changes after pulse events.
The LVS-500 series low voltage surge testers, output waveforms described in the IEC 61000-4-5 standard and/or surge waveforms described in GR-1089-CORE and C62.45-2002 IEEE, are designed for testing the surge immunity of devices at both wafer and package levels. Determination of the surge stressed EOS failure thresholds is made easy using the pulse generator.
The pulse source design and pulse source delivery method ensure waveform performance directly at the device under test, not at the generator output. Current waveforms can be captured and analyzed for each surge event with automated pulsed-failure measurement setup. In addition, voltage waveforms can be captured and used to determine the turn-on level of protection structures. They can also be used as a means of failure determination, as the leakage characteristics show changes after pulse events.
| Parameters | LVS-500 | LVS-1000 | LVS-1500 | LVS-2000 | LVS-500 | LVS-1000 | LVS-1500 | LVS-2000 | Unit |
| -8/20 | -10/1000 | ||||||||
| Output Voltage @ open load |
1 – 500 | 1 – 1000 | 1 – 1500 | 1 – 2000 | 1 – 500 | 1 – 1000 | 1 – 1500 | 1 – 2000 | V |
| Output Current @ short load |
0.5–250 | 0.5-500 | 0.5–750 | 0.5–1000 | 0.1–50 | 0.1-100 | 0.5–150 | 0.1 – 200 | A |
| Output Precision | ± 5 % ± 0.1 V | ||||||||
| Output Resistance | 2 ± 5% | 10 ± 10% | Ω | ||||||
| Short Circuit Current Front Time | 8 ± 30% | 10 (+0, -5) | µs | ||||||
| Short Circuit Current Time-to-Half |
20 ± 20% | 1000 ± 20% | µs | ||||||
| Open Circuit Voltage Front Time |
1.2 ± 30% | 10 (+0, -5) | µs | ||||||
| Open Circuit Voltage Time-to-Half |
50 ± 20% | 1000 (+1000, -0) | µs | ||||||
| Dimensions | 347 X 300 X 145 | ||||||||
| Weight | 5 | 6 | 8 | 10 | 5 | 6 | 8 | 10 | kg |
| Line | Part # or Option # | Description |
|
Low Voltage Surge Pulse Generator |
||

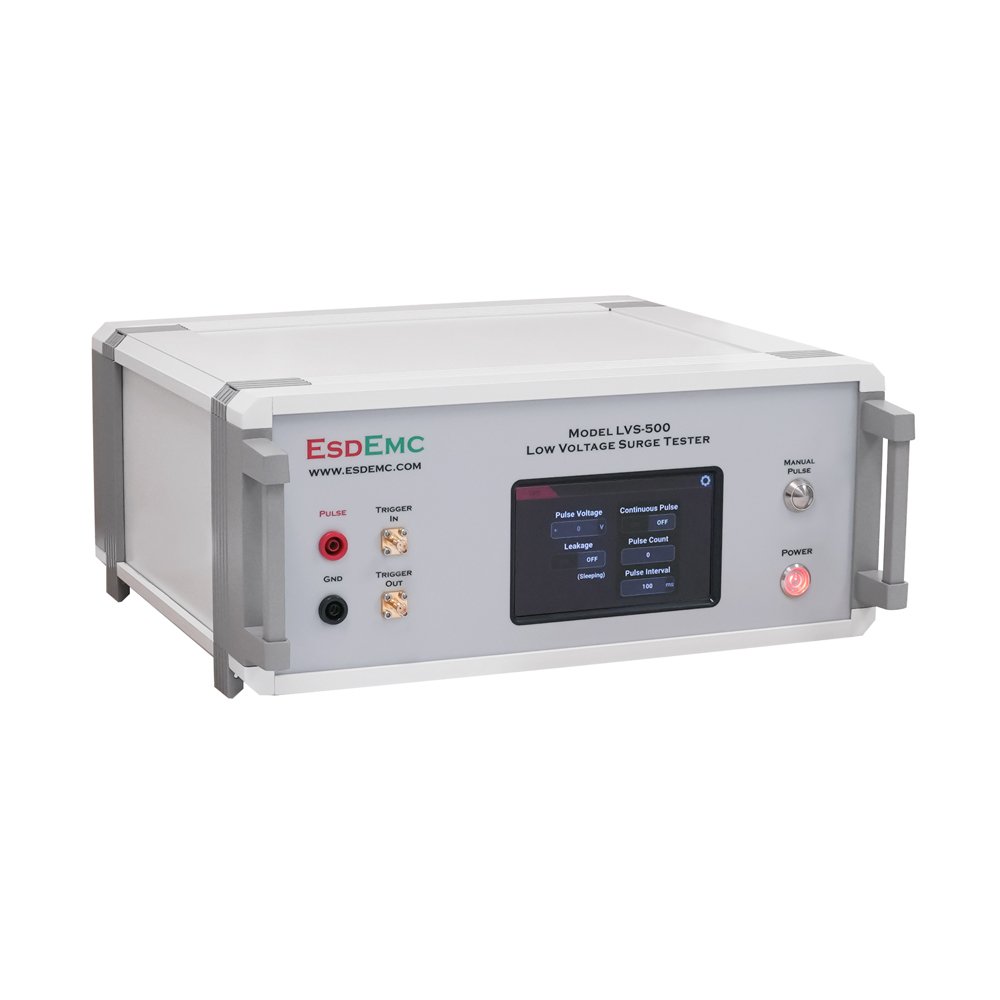

| 1.1 | LVS-500 | LVS-500 Controller, voltage @ open load up to 500V (Main Controller only, with touch panel, remote control USB port, at least 1 pulse output option for LVS-500 must be selected) |
| 1.2 | LVS-500-8/20 | Low Voltage Surge 8/20 µs module for LVS-500 (Injection current for @ load from 0.5 to 250A) |
| 1.3 | LVS-500-10/1000 | Low Voltage Surge 10/1000 µs module for LVS-500 (Max injection current @ short load >= 50A) |
| 1.4 | LVS-1000 | LVS-1000 Controller, voltage @ open load up to 500V (Main Controller only, with touch panel, remote control USB port, at least 1 pulse output option for LVS-1000 must be selected) |
| 1.5 | LVS-1000-8/20 | Low Voltage Surge 8/20 µs module for LVS-1000 (Injection current for @ load from 0.5 to 500A) |
| 1.6 | LVS-1000-10/1000 | Low Voltage Surge 10/1000 µs module for LVS-1000 (Max injection current @ short load >= 100A) |
| 1.7 | LVS-1500 | LVS-1500 Controller, voltage @ open load up to 1500V (Main Controller only, with touch panel, remote control USB port, at least 1 pulse output option for LVS-500 must be selected) |
| 1.8 | LVS-1500-8/20 | Low Voltage Surge 8/20 µs module for LVS-1500 (Max injection current @ short load from 0.5 to 750A) |
| 1.9 | LVS-1500-10/100 | Low Voltage Surge 10/1000 µs module for LVS-1500 (Max injection current @ short load >= 150A) |
| 1.10 | LVS-2000 | LVS-2000 Controller, voltage @ open load up to 2000V (Main Controller only, with touch panel, remote control USB port, at least 1 pulse output option for LVS-500 must be selected) |
| 1.11 | LVS-2000-8/20 | Low Voltage Surge 8/20 µs module for LVS-2000 (Max injection current @ short load from 0.5 to 1000A) |
| 1.12 | LVS-2000-10/1000 | Low Voltage Surge 10/1000 µs module for LVS-2000 (Max injection current @ short load >= 200A) |
|
LVS Measurement Options |
||
| 2.1 | ES510-A1 | LVS package level waveform and leakage test accessories |
| 2.2 | ES510-A2 | LVS wafer level waveform and leakage test accessories |
| 2.3 | LVS-SW | Remote control software of the LVS system with PC |
| 2.4 | BT-LVS600V1A | Surge Bias Tee / CDN (designed for 8/20 surge) Max DC 600V, DCR <5 Ohm, Max 1A DC, 5A Pulse, 1kHz – 100MHz |
| 2.5 | Voltage Probe | Optional, Passive voltage divider probe, 101:1 |
| 2.6 | CT-T10-0p1 | Passive current probe, 0.1 V/A |
Other options are available with customization:
2/10 µs, 10/1000 us, Telcordia GR-1089 core
10/700 us, IEC 60950, detailed in ITU-T, K 17
1.2/50 us, IEC 60950, detailed in ITU-T, K 21
10/350 us, IEC 62305-4(IEC 61643-1)
0/200 us, 5/50 us, JIS
